ELECTRONIC BALLAST FOR UV LAMPS
Product Introduction

Type Input Voltage
(V)
Input Current
(A)
PF Lamp Power
(W)
Lamp Current
(A)
Start Mode
10W-24W
PH12-180-10 198-264V 0.08@230V >0.5 10 0.15-0.18 Pre-heat
PW3-425-18A 99-132V 0.3@120V >0.55 18 0.35-0.43 Pre-heat
PW3-425-18 198-264V 0.16@230V >0.55 18 0.35-0.43 Pre-heat
PH12-350-24 198-264V 0.21@230V >0.55 24 0.30-0.35 Pre-heat
25W-105W
PL11-425-40 198-264V 0.23@230V >0.9 40 0.38-0.43 Instant
PL1-425-90 198-264V 0.71@230V >0.55 90 0.38-0.43 Instant

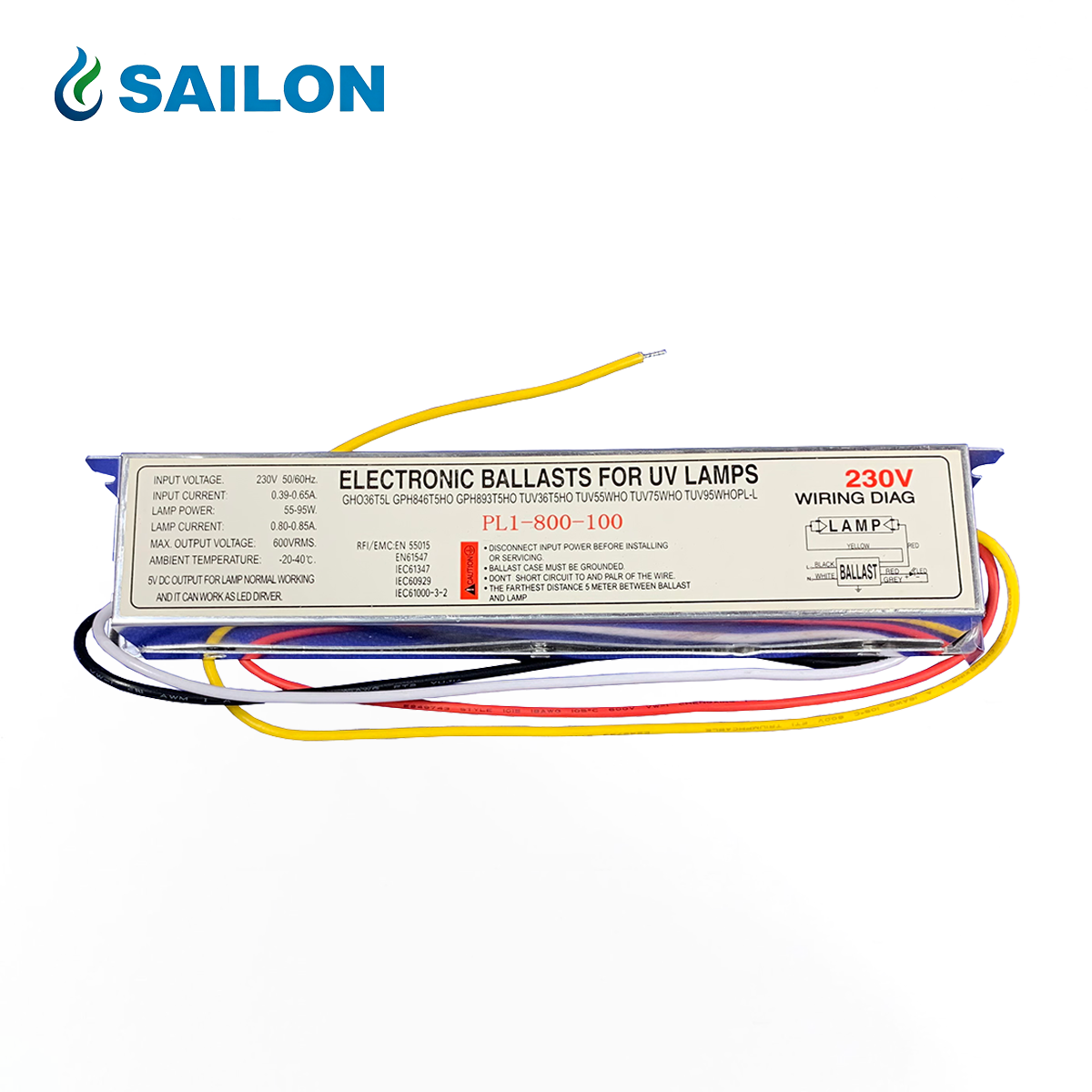

PL1-800-100 198-264V 0.48@230V >0.9 100 0.75-0.85 Instant
PH11-425-40 198-264V 0.36@230V >0.55 40 0.38-0.43 Pre-heat
PH11-800-55 198-264V 0.28@230V >0.92 55 0.7-0.9 Pre-heat
PH11-425-36U 99-264V 0.2@230V >0.98 36 0.38-0.43 Pre-heat
PH7-800-95U 99-264V 0.48@230V >0.98 95 0.75-0.85 Pre-heat
EPS51-425-40U 99-264V 0.2@230V >0.98 40 0.38-0.43 Pre-heat
EPS51-800-95N 99-264V 0.46@230V >0.98 95 0.75-0.85 Pre-heat
105W-500W
PH2-800-2/75 198-264V    0.73@230V >0.98 200 0.75-0.85 Pre-heat
EPS51-1200-105 198-264V    0.52@230V >0.98 105 1.0-1.25 Pre-heat
PH8-800-155 198-264V 0.74@230V >0.9 155 0.75-0.85 Pre-heat
PH8-1200-190 198-264V   0.98@230V >0.98 190 1.0-1.25 Pre-heat
PS9-AL-200 198-264V   0.98@230V >0.98 200 1.2-2.1 Pre-heat

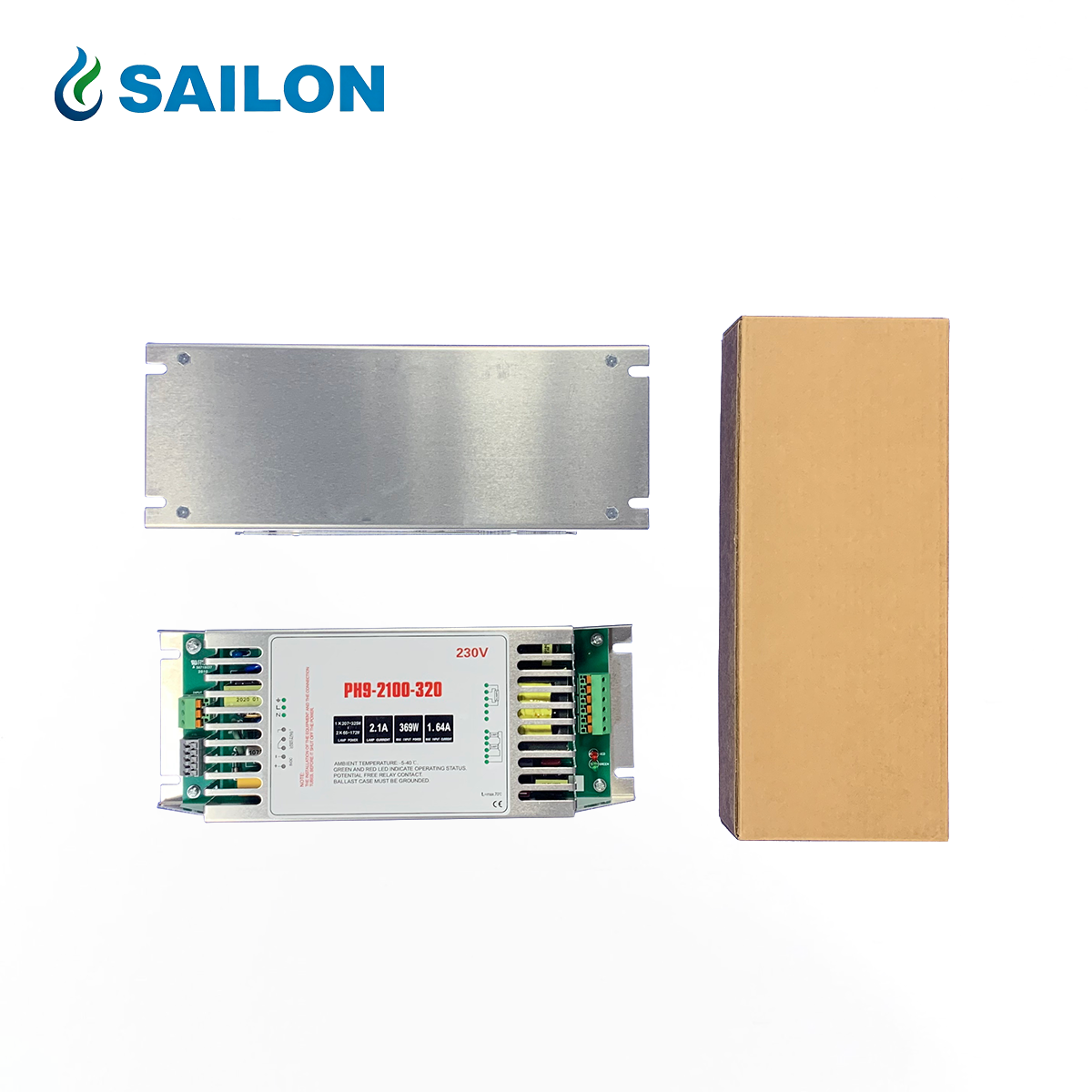

PH9-2100-320 198-264V 1.64@230V >0.98 369 1.95-2.25 Pre-heat
PH10-AL-500 198-264 V 2.32@230V >0.98 500 4.7~6.0  Pre-heat
PS10-AL-2/320 198~264V 3.07@230V >0.98 2x320 1.8-2.1 Pre-heat
Electronic ballast is very important to the bulbs, only working with the electronic ballast, the germicidal effect of whole UVray series can be the best. Because Sailon has developed high- quality electronic ballast, our UV lamps can play the biggest efficiency, and it can prolong the lamp's life.Every type of electronic ballast has another series. Waterproof is available for using outside or wet environment.

Outstanding character Life can reach 10years
Preheat start, good for prolong the lamp's life.
Electronic ballast makes the UV output stronger.
Sound and light function for warning. Customize special type for you.
And the self-regulation function of UV output control.
