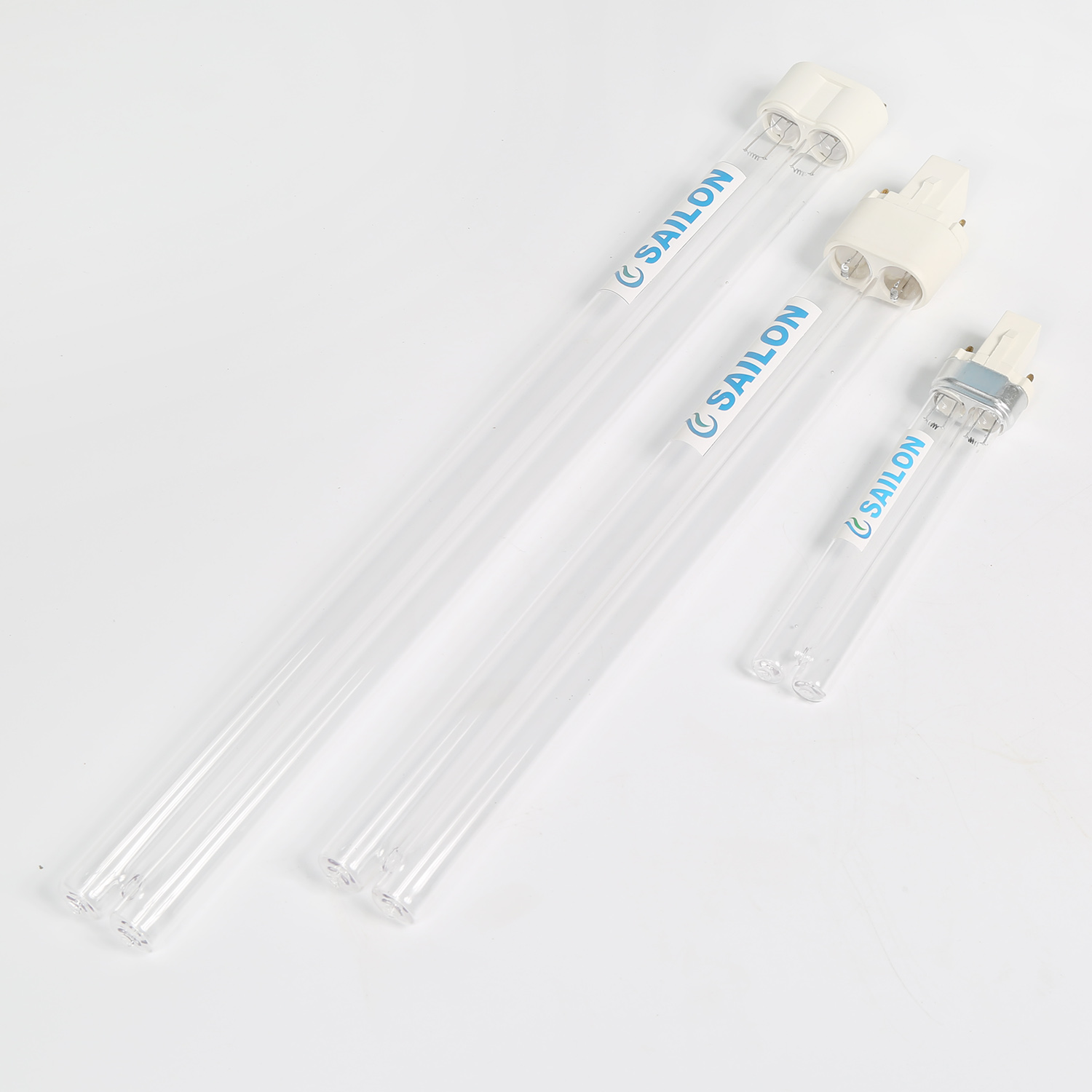

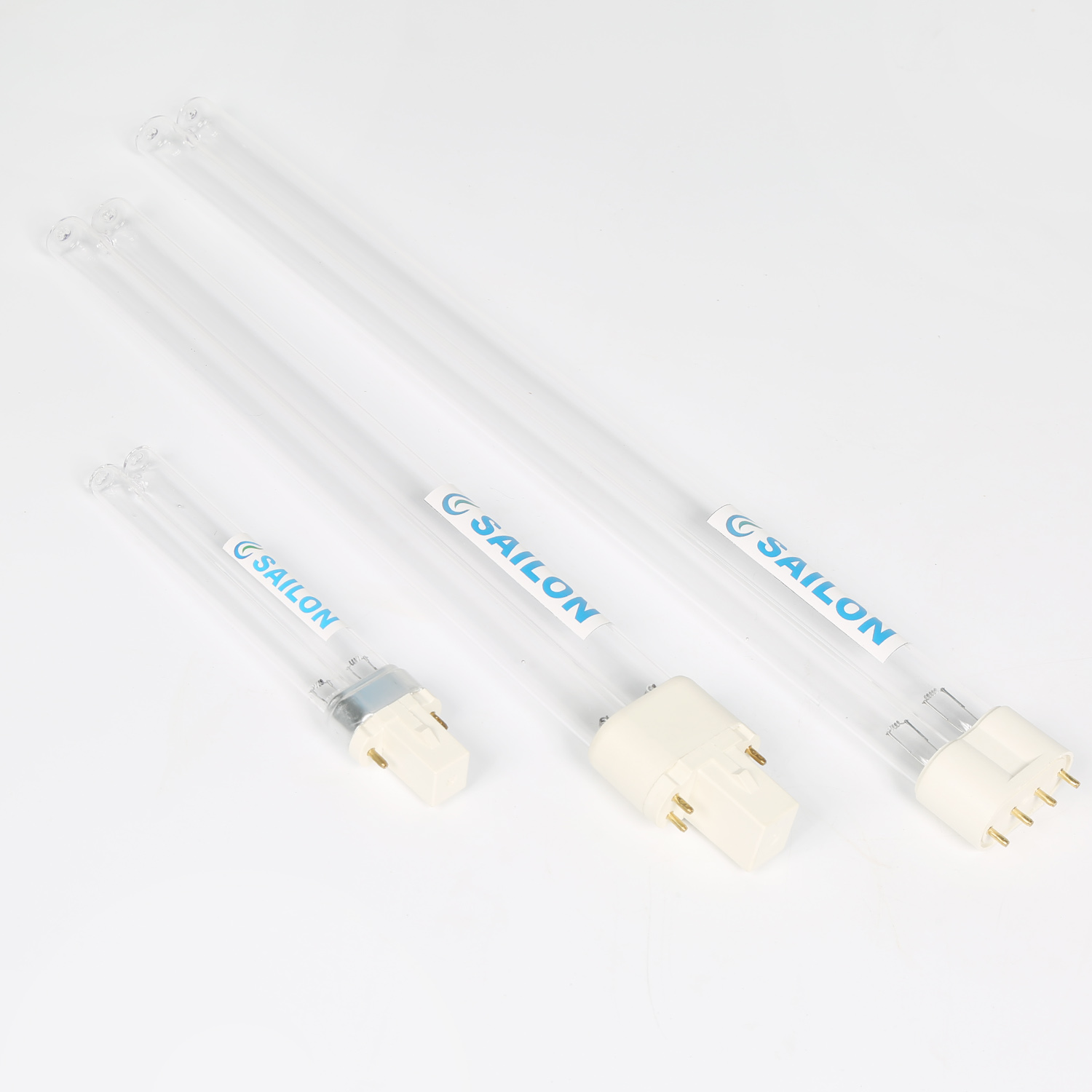

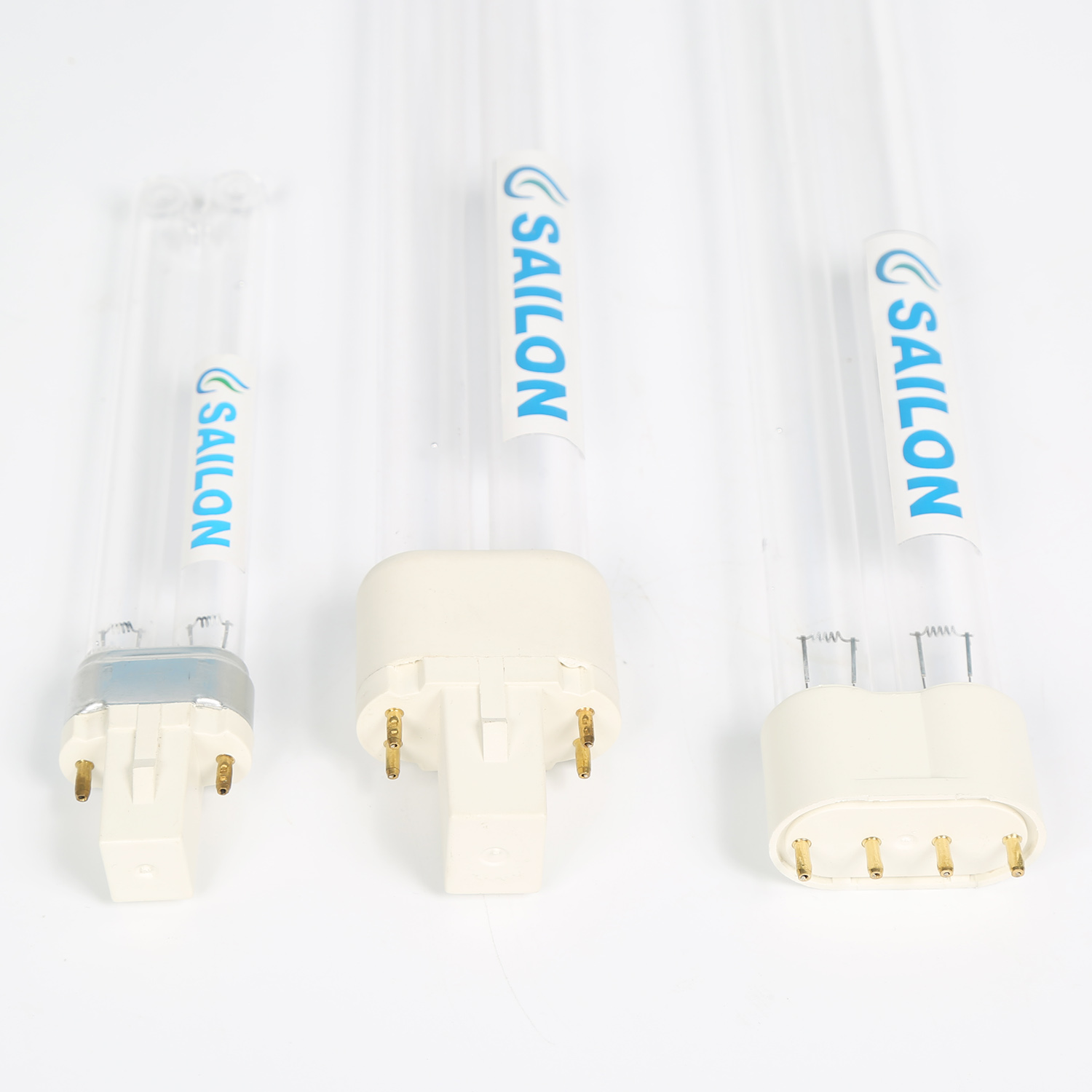

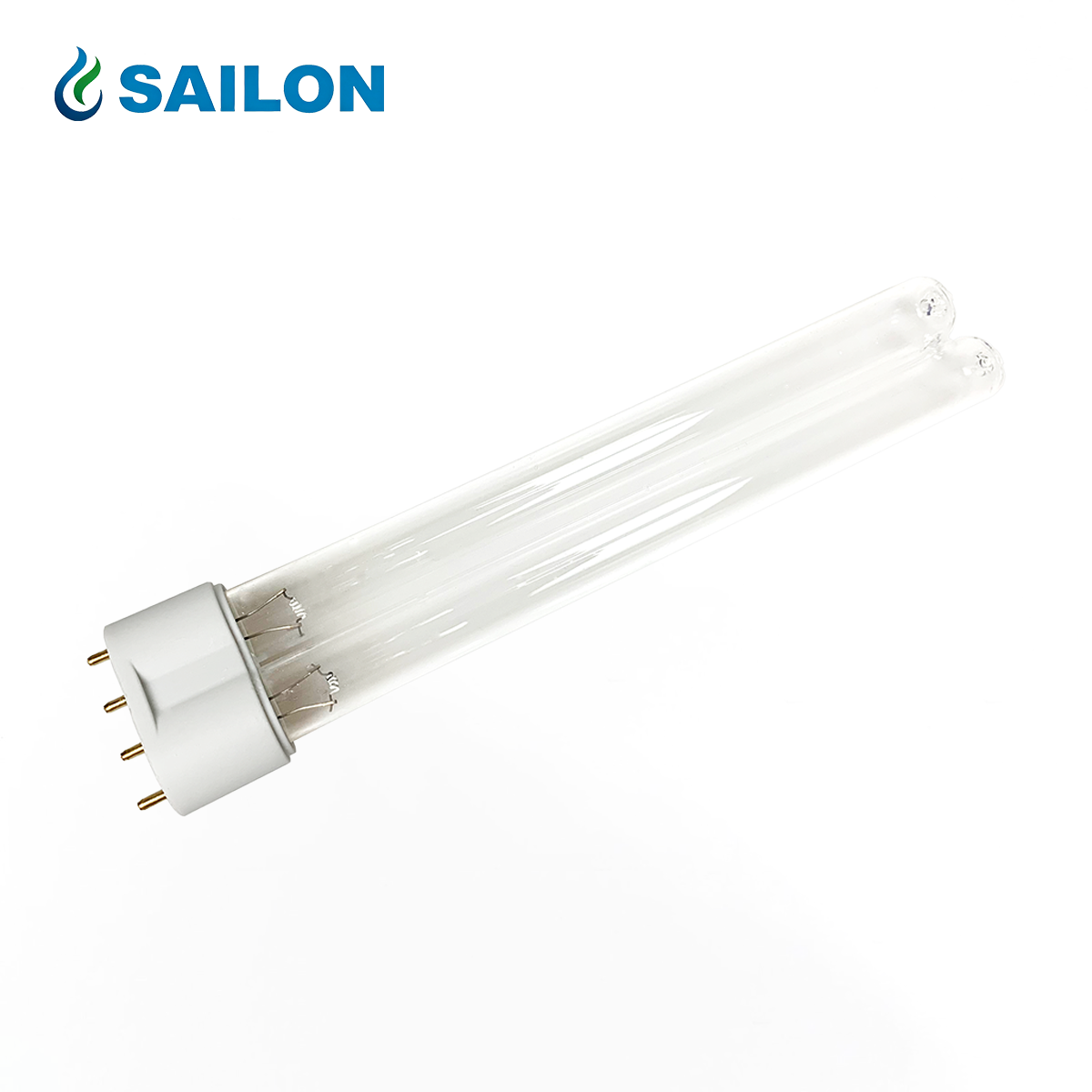

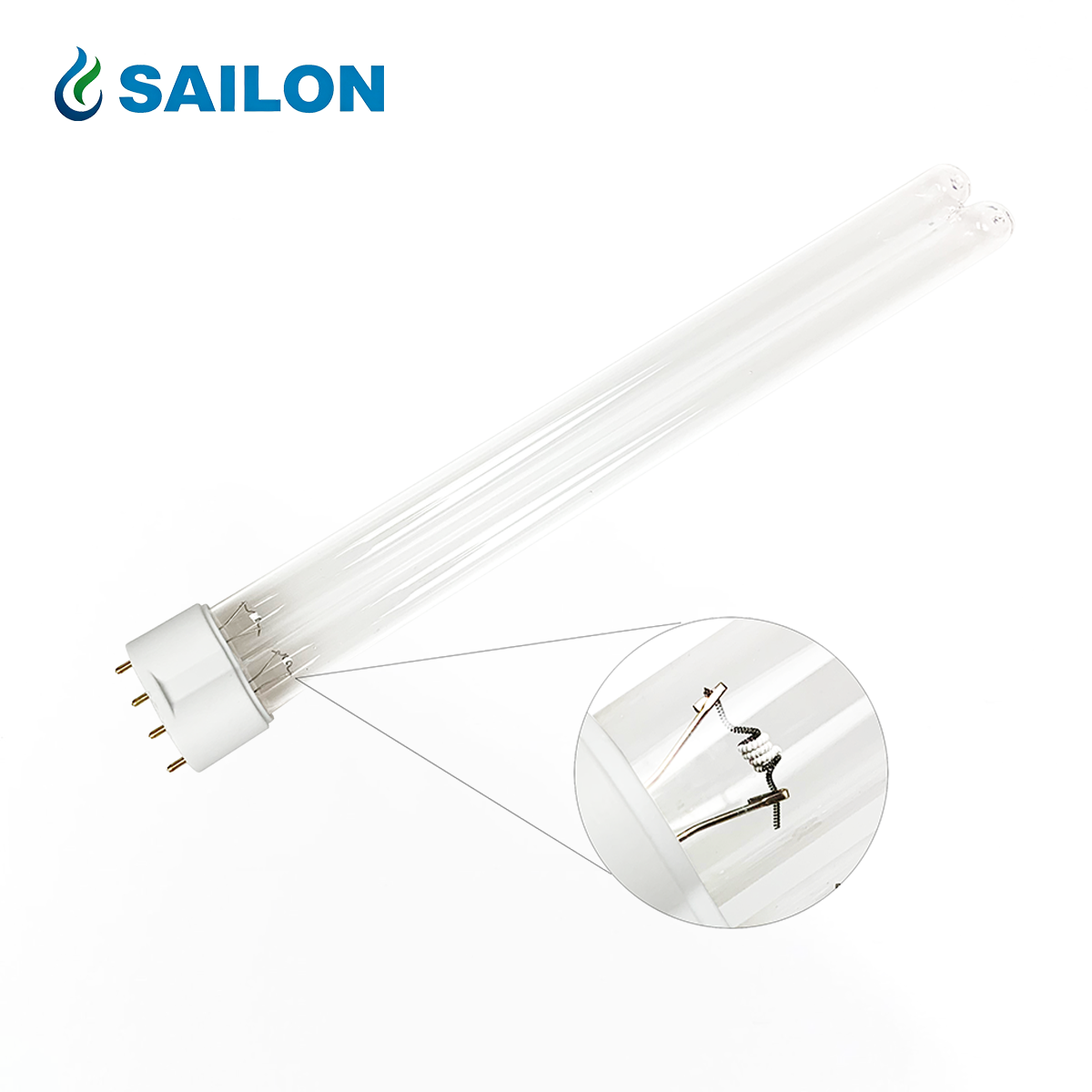

H-SHAPE G23/2G11 UV LAMP

Product Introduction

Type	Tube Diameter (mm)	Length H1	Power W	Voltage V	Current MA	UV output 254nm uw/cm2 w		Lamp base	Standard Life type (h)	Long life type (h)
PL-S5W	13	85	5	34	180	12	1.1	G23/2G7	9000	12000
PL-S7W	13	115	7	47	175	20	1.5	G23/2G7	9000	12000
PL-S9W	13	145	9	60	170	23	2.4	G23/2G7	9000	12000
PL-S11W	13	214	11	89	160	33	3.6	G23/2G7	9000	12000
PL-S13W	13	155	13	60	290	31	3.4	GX23/2G7	9000	12000
PL-L18W	17	217	18	60	370	60	5.8	2G11	9000	13000
PL-L24W	17	317	24	87	350	90	7	2G11	9000	13000
PL-L35W*	17	217	35	40	850	105	11	2G11	9000	13000
PL-36W	17	410	36	105	440	120	12	2G11	9000	13000

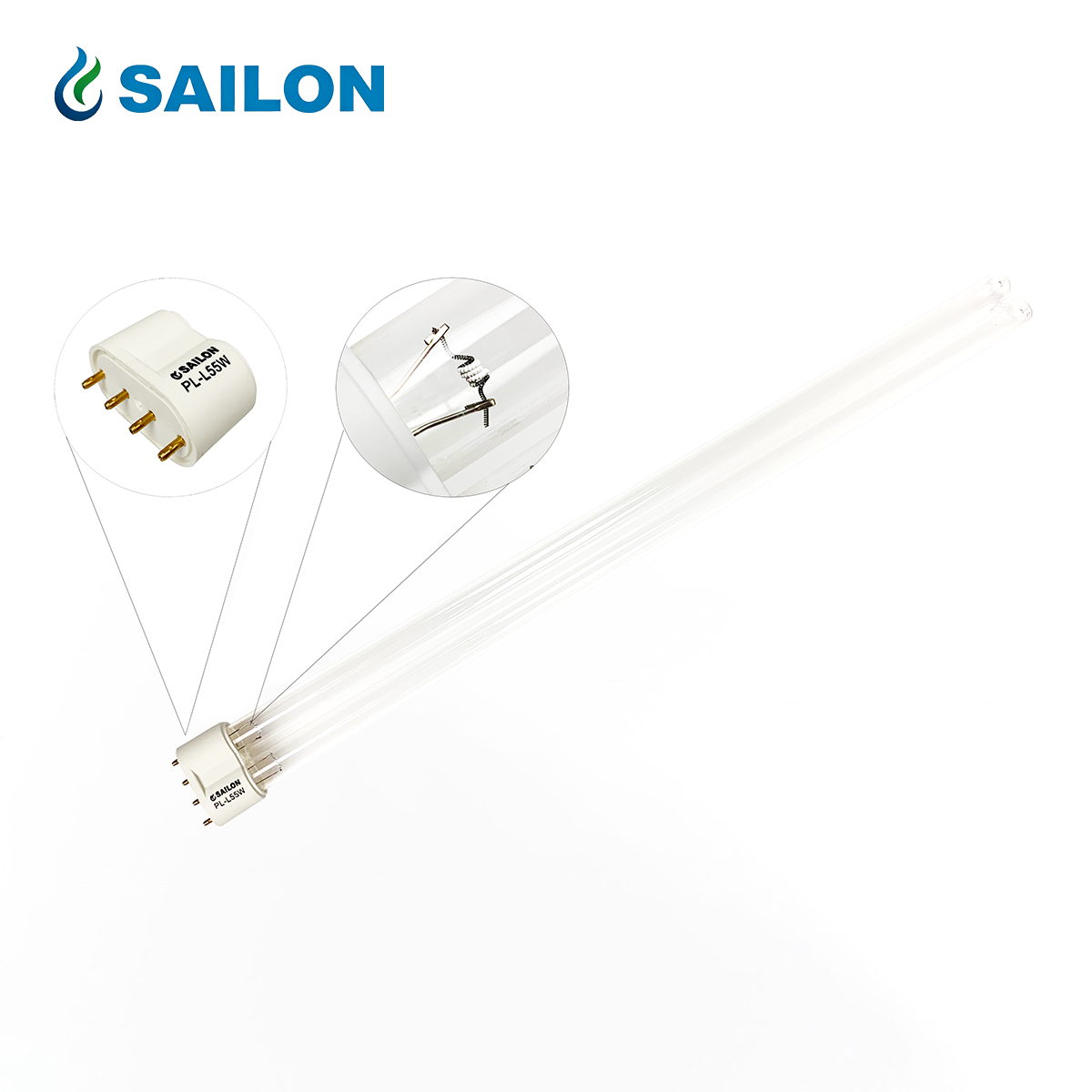

PL-L55W*	17	530	55	103	540	170	18	2G11	9000	13000
PL-L60W*	17	410	60	118	670	170	18	2G11	9000	13000
PL-L95W*	17	530	95	100	950	305	33	2G11	9000	13000
Notice:The type which with * have to work with electronic ballast.

Characteristics：

1.All of H shape lamp made by Sailon Lighting can be replaced Philips's unite very well.

2.The inside wall of tube have been coated with a protective layer,so as to reduce the decay of UV light.

3.There are starter in side G23 base,is very fast to start.

4.We can use amalgam technology to make the bigger power and long life

Application:

Aquarium sterilizer

Fish Pond dinsinfection

Air cleaning dinsinfection

Disinfection of Drinking water

UV filter
