AMALGAM LONG LIFE GERMICIDAL U-AMALGAM LONG LIFE GERMICIDAL UV LAMP
Home > Products > AMALGAM LONG LIFE GERMICIDAL U >

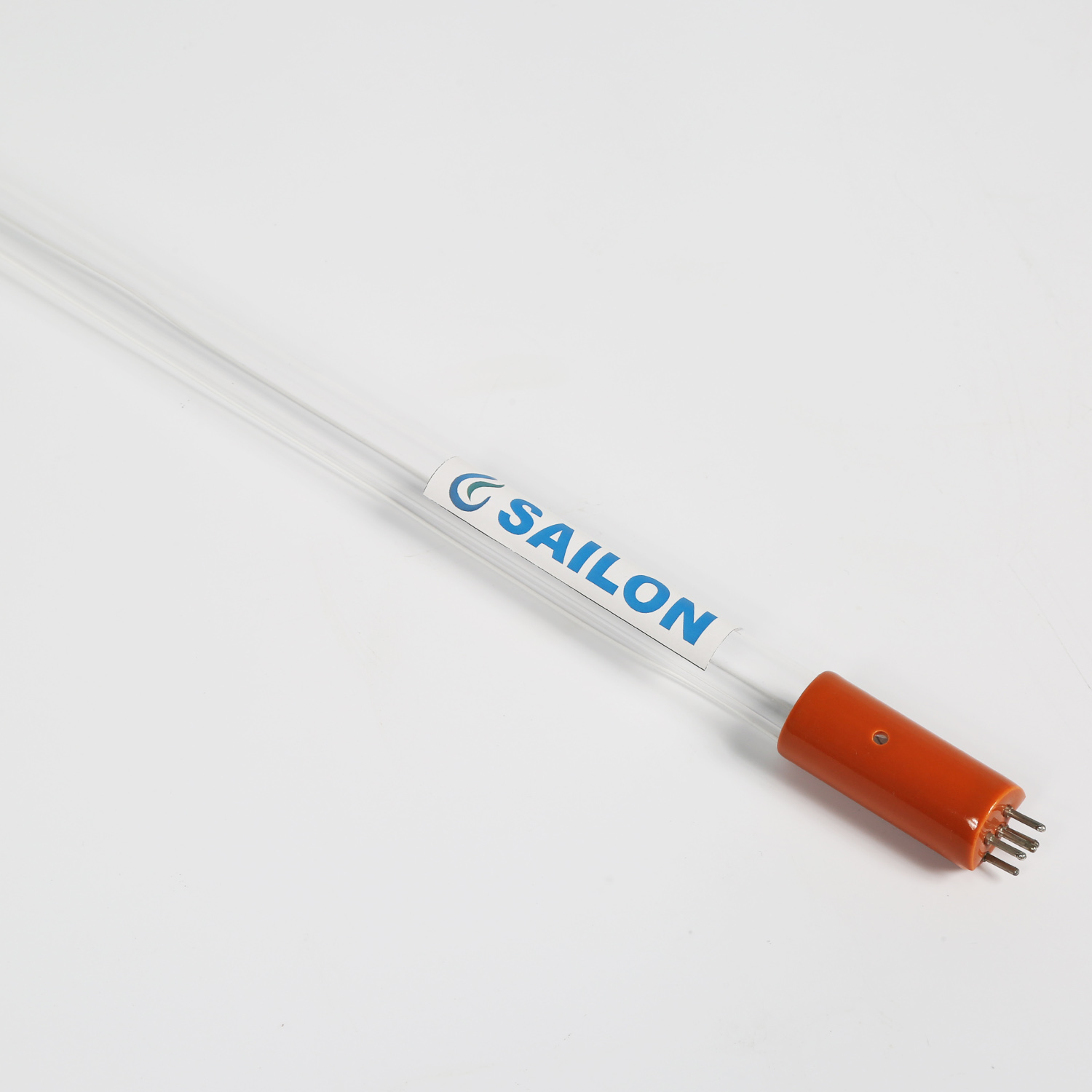

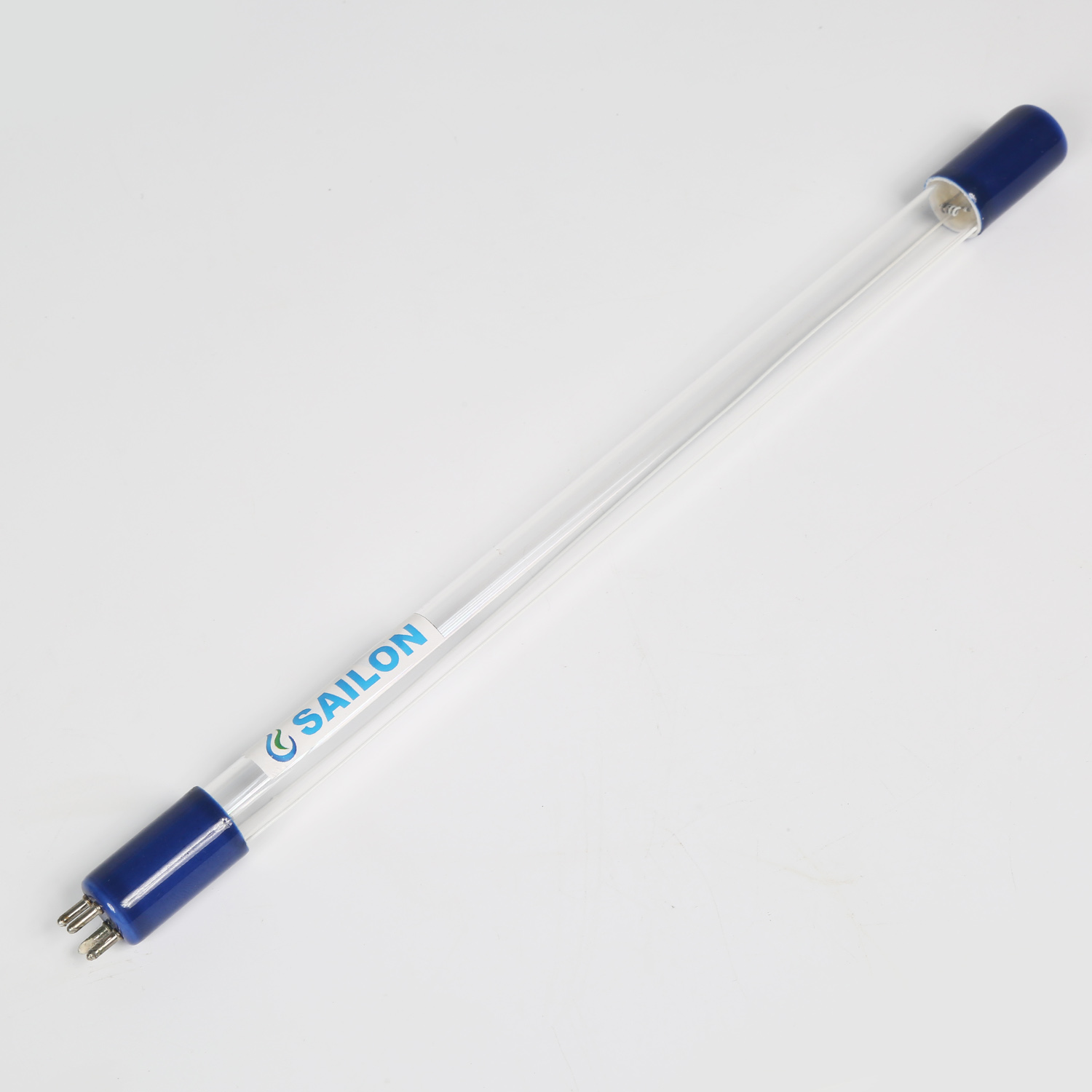

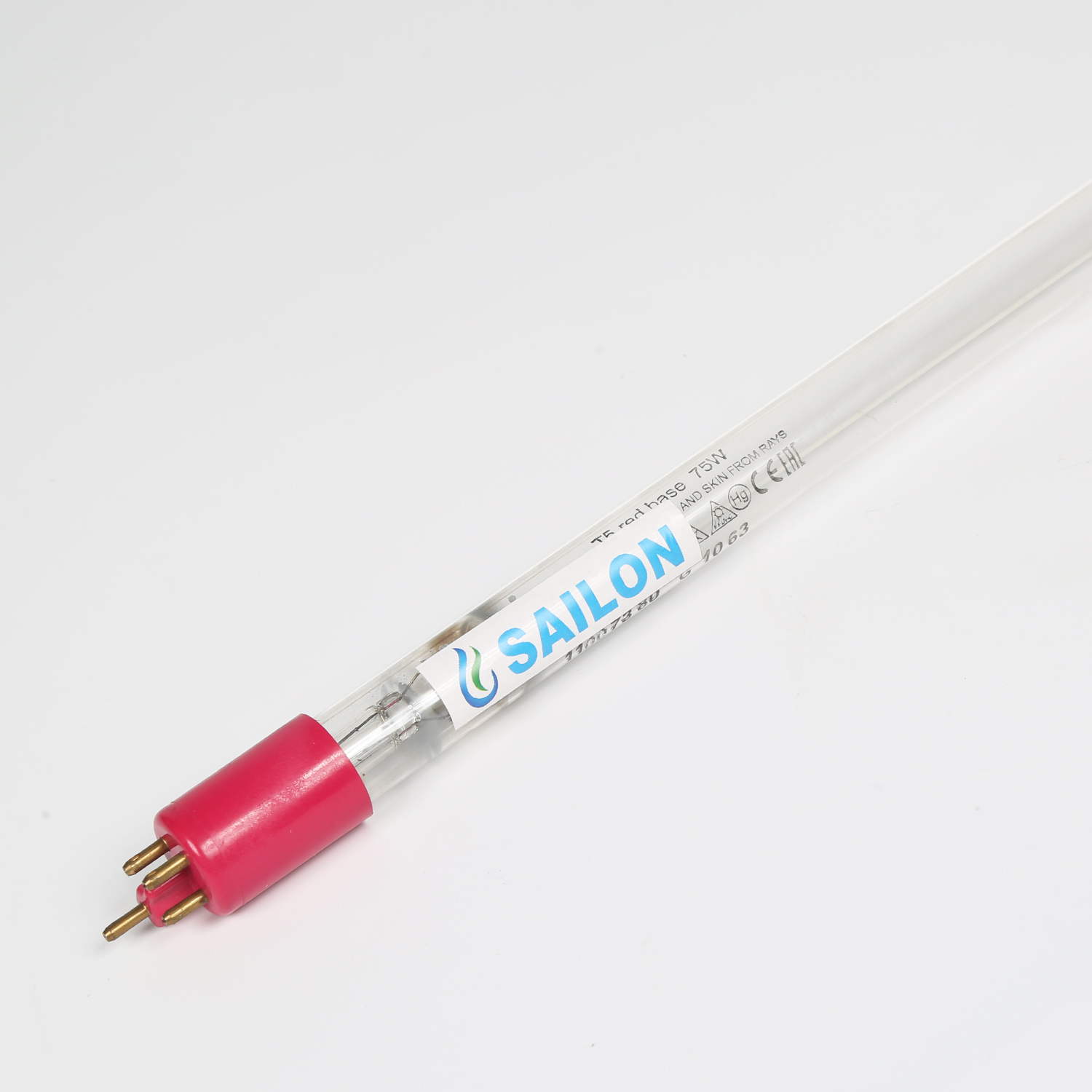

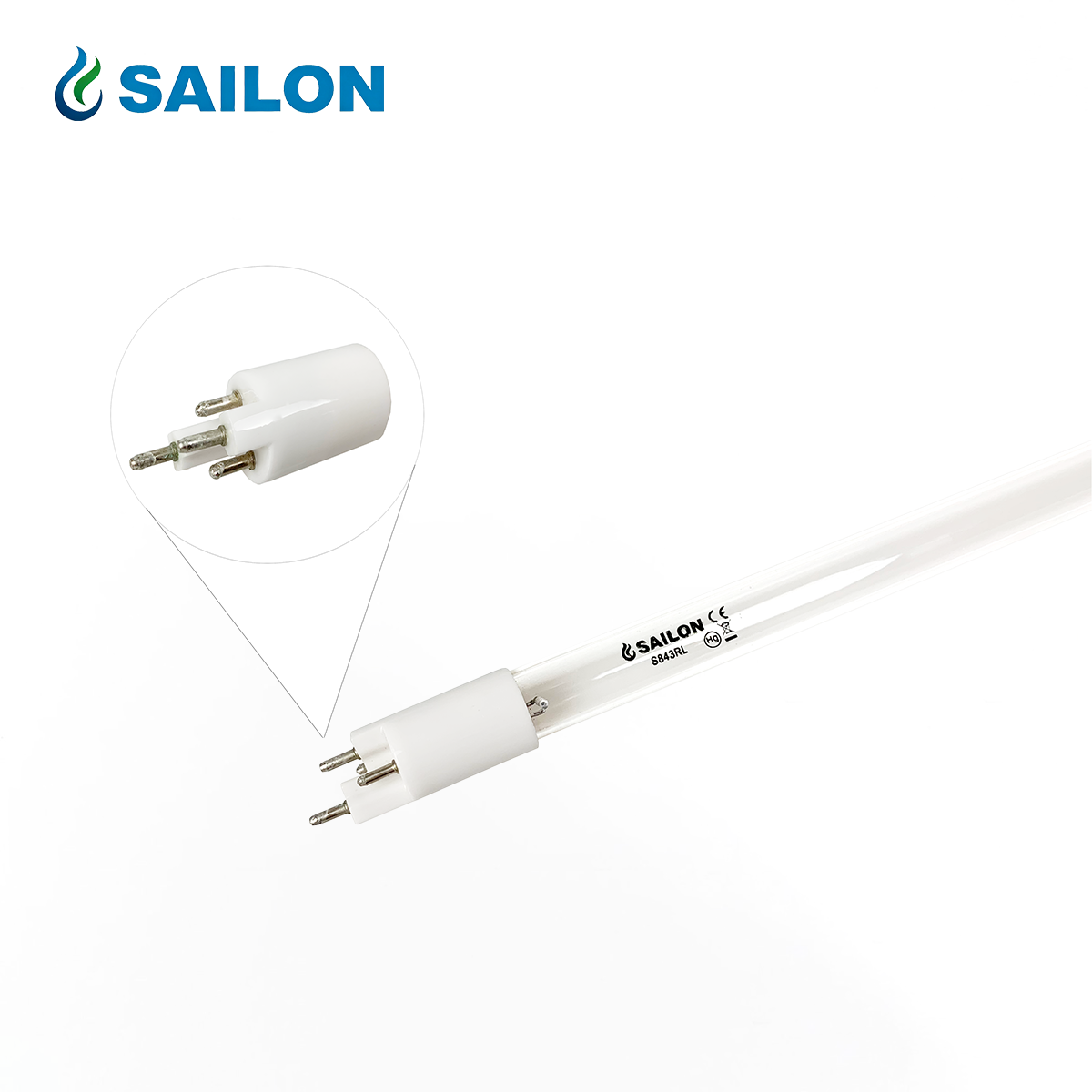

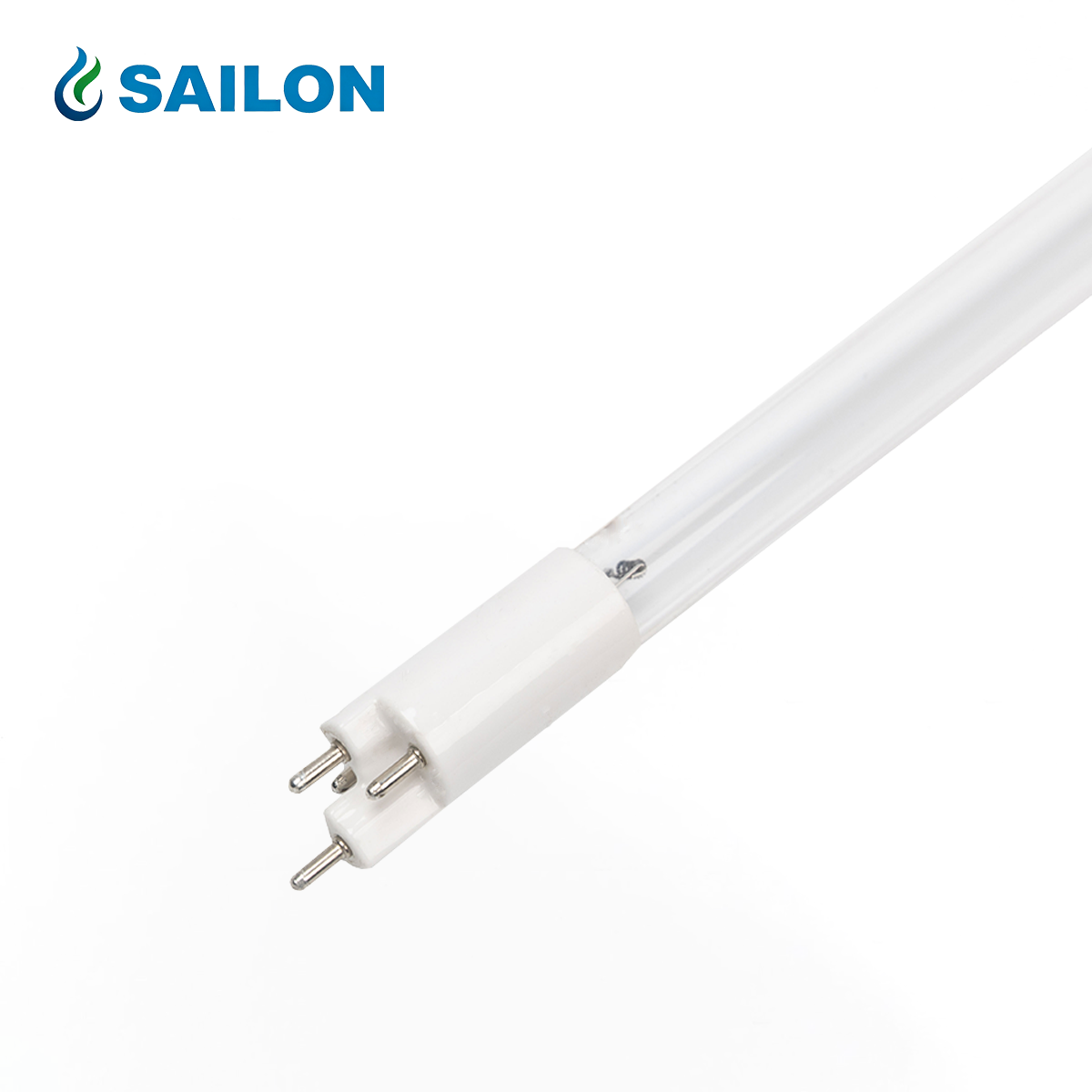

AMALGAM LONG LIFE GERMICIDAL UV LAMP
Product Introduction
|
Type |
Tub Diameter(MM) |
S(MM) |
Power(W) |
Voltage 50/60Hz |
Current(A) |
UV output at 254nm
uw/cm2 w |
UV output at 254nm
uw/cm2 w |
Standard life type |
|
T5 DIAMETER |
|
GPHA357T5L |
15 |
357 |
42 |
36 |
1.2 |
110 |
11 |
13000 |
|
GPHA843T5L |
15 |
843 |
105 |
88 |
1.2 |
320 |
35 |
13000 |
|
GPHA1000T5L |
15 |
1000 |
127 |
107 |
1.2 |
370 |
42 |
13000 |
|
GPHA1145T5L |
15 |
1145 |
150 |
130 |
1.2 |
395 |
54 |
13000 |
|
GPHA1554T5L |
15 |
1554 |
190 |
164 |
1.2 |
500 |
68 |
13000 |
|
T6 DIAMETER |
|
GPHA357T6L |
19 |
257 |
57 |
32 |
1.8 |
130 |
13 |
13000 |
|
GPHA843T6L |
19 |
843 |
130 |
71 |
1.8 |
400 |
43 |
13000 |
|
GPHA1000T6L |
19 |
1000 |
150 |
84 |
1.8 |
460 |
52 |
13000 |
|
GPHA1145T6L |
19 |
1145 |
180 |
102 |
1.8 |
550 |
65 |
13000 |
|
GPHA1554T6L |
19 |
1554 |
240 |
134 |
1.8 |
600 |
84 |
13000 |
|
GPHHA357T6L |
19 |
357 |
65 |
31 |
2.1 |
140 |
14 |
13000 |
|
GPHHA843T6L |
19 |
843 |
172 |
82 |
2.1 |
490 |
54 |
13000 |
|
GPHHA1000T6L |
19 |
1000 |
207 |
99 |
2.1 |
570 |
65 |
13000 |
|
GPHHA1145T6L |
19 |
1145 |
240 |
115 |
2.1 |
600 |
84 |
13000 |
|
GPHHA1554T6L |
19 |
1554 |
320 |
154 |
2.1 |
750 |
105 |
13000 |
|
T8 DIAMETER |
|
GPHHA1510T8L |
25 |
1510 |
250 |
83 |
3.1 |
650 |
90 |
13000 |
|
T10管径 |
|
GXA1500T10L |
32 |
1500 |
270 |
75 |
3.8 |
650 |
93 |
13000 |
|
GPHA1515T10L |
32 |
1515 |
270 |
75 |
3.8 |
650 |
93 |
13000 |
|
GPHHA1515T10L |
32 |
1515 |
330 |
84 |
3.8 |
850 |
110 |
13000 |
|
GPHHA1310T10L |
32 |
1210 |
400 |
82 |
5 |
1050 |
130 |
13000 |
|
GPHHA1554T10L |
32 |
1554 |
500 |
90 |
5.5 |
1300 |
165 |
13000 |
Characteristics for Amalgam lamp:
Sailon UV LIghting can be manufactured the Amalgam lamps with hong life and big power,and the UV output is three times
that of ordinary low pressure UV lamps.
1.Sailon's UV lamp still keep the 90% high UV output after runing 10000hrs,owing to special protective coating applied to
the inner wall of the lamp.So Sailon UV Light always keep stability sterilization
2.The long life of Sailon's UVC light can be reach 13000hrs.
3.Making with special Amalgam technology will keep stability UV output in a wide range of temperature,can be used for the
envirenment is more than 90℃.
4.It's very helpful in the equipments where has a limit places to install,because we can make the power more larger.
5.Sailon UVC lighting proviced the Amalgam UV lamp with 254nm and (254nm,185nm).254nm and 185nm can be produced
the OZONE.
Aplication For 254nm UV lamp:
1.Disinfection of swiming pool
2.Wast water treatment system
3.Drinking water treatment system
4.Swiming pool and SPA treatment
5.Air conditioning pipe and vanitation pipe disinfection
Aplication For 254nm and 185nm UV lamp:
1.Kitchen fume removel
2.Air conditioning pipe and vanitation pipe disinfection
3.Reduce the application of total organic compounds(TOC),Light cleaning
4.Swiming pool and SPA treatment
5.Ultrapure water treatment system(semiconductor,medicine,cosmetic)
